Transformers are the silent workhorses of our electrical infrastructure, managing voltage levels across everything from industrial grids to domestic appliances. One of the most common and critical applications of a transformer is to convert 240V AC mains electricity into a much safer and more usable 12V AC or DC supply. This voltage level is essential for operating low-power electronics, LED lighting, security systems, and various consumer devices.

But which type of transformer is suitable for this voltage reduction, and what factors should influence the selection?

This guide provides an in-depth overview of transformer types used for stepping down 240V AC to 12V, exploring technical parameters, real-world applications, market trends, and buyer insights—all optimized for technical accuracy and SEO relevance.

Core Concept: What Does a Step-Down Transformer Do?

A step-down transformer reduces high input voltage to a lower output voltage while maintaining the same frequency. In the case of reducing 240V to 12V, the transformer’s turns ratio is the defining parameter. A primary coil with 20 times the turns of the secondary coil will produce the desired 12V output from a 240V input.

Types of step-down transformers include:

• Iron-core laminated transformers (for AC applications)
• Toroidal transformers (for high-efficiency, compact designs)
• Switch-mode power supply transformers (for lightweight, high-frequency conversion)
• Encapsulated PCB-mounted transformers (for small electronics)

Common Applications of 240V to 12V Step-Down Transformers

A 12V supply is safe, energy-efficient, and compatible with a wide range of low-voltage systems. Key application areas include:

• LED lighting systems: Especially for under-cabinet lights, garden lamps, and signage.
• Security cameras: Many CCTV systems operate on 12V.
• Automotive battery chargers: Using household power to safely charge 12V car batteries.
• Telecommunication devices: For routers and fiber-optic converters.
• HVAC controls: Thermostats and control boards often require 12V AC/DC.

Market Background and Demand Trends

Globally, the demand for 12V applications is growing due to the proliferation of smart home devices, energy-efficient lighting, and mobile electronics. According to industry surveys and publications from IEEE and IEEMA, there is increasing preference for modular, compact, and high-efficiency transformers in both residential and commercial markets.

In particular, LED lighting retrofits in older buildings drive demand for AC-to-DC 12V transformers, as they ensure compatibility with standard 240V supply without requiring a complete rewiring of systems.

Types of Transformers Used to Convert 240V to 12V

Here’s a detailed look at the most suitable transformer types:

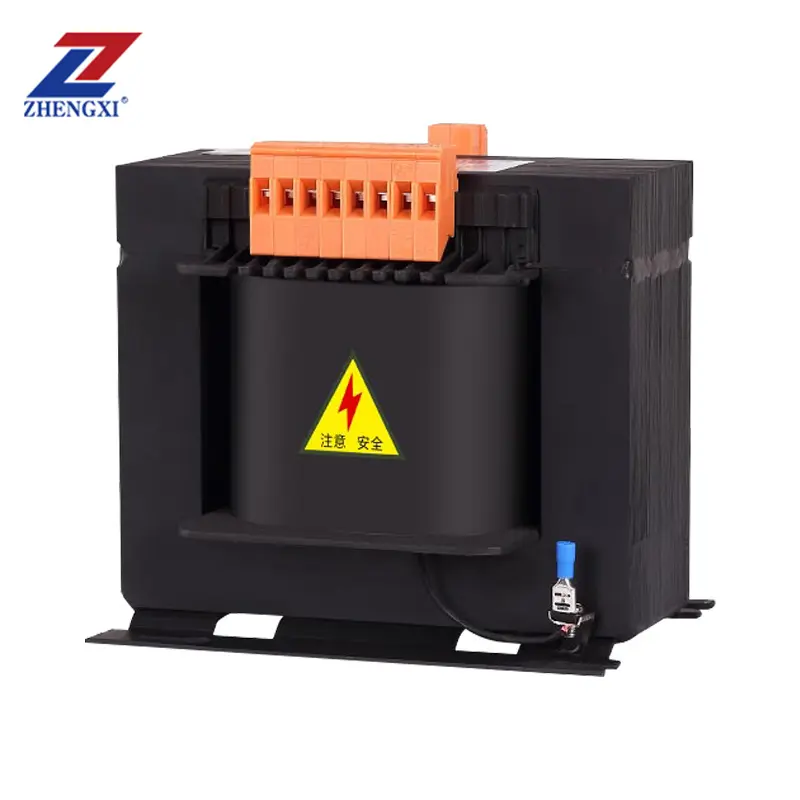

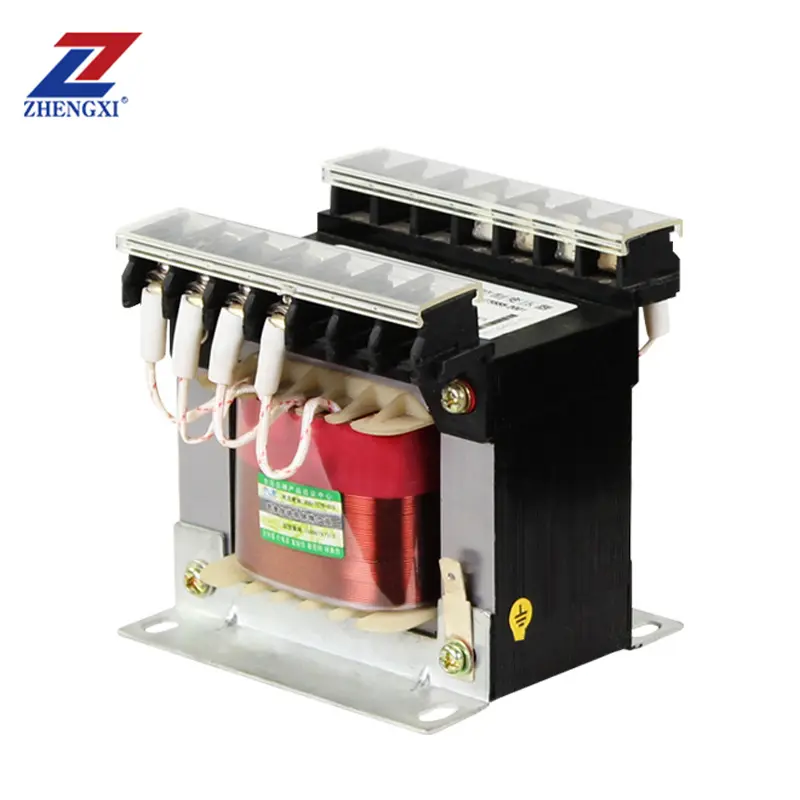

1. Laminated Core Transformer (Iron-Core)

• Traditional and robust design
• Typically used for AC-to-AC conversion
• Best suited for simple appliances and industrial controls
• Offers isolation and surge resistance

Pros:

• Reliable and low maintenance
• Affordable for standard applications

Cons:

• Bulky and heavy
• Efficiency losses at low loads

2. Toroidal Transformer

• Ring-shaped design for compact size and high efficiency
• Lower magnetic leakage and noise
• Suitable for audio systems and medical electronics

Pros:

• Compact footprint
• Very quiet operation
• Higher efficiency compared to EI core transformers

Cons:

• More expensive
• Requires precise manufacturing

3. Switch Mode Power Supply (SMPS) Transformer

• Used in DC output applications
• Operates at high frequency (tens of kHz)
• Requires rectifier and regulator circuits

Pros:

• Lightweight and efficient
• Excellent for portable devices and consumer electronics

Cons:

• Requires filtering
• Complex circuitry

4. Encapsulated or PCB-Mounted Transformer

• Integrated into printed circuit boards
• Low power applications (e.g., IoT devices)

Pros:

• Easy to install on PCBs
• Minimal space required

Cons:

• Limited power rating
• Not suitable for external, high-load systems

Technical Parameters to Evaluate

When choosing a transformer to convert 240V to 12V, pay attention to the following specifications:

Step-Down Transformer vs Power Adapter: What’s the Difference?

While transformers and adapters may seem similar, they serve distinct purposes:

• Transformers convert voltage but not waveform or regulation.
• Power adapters (AC-DC converters) provide a regulated DC output with rectification and filtering.

Example:
If your application needs 12V AC (e.g., halogen lights), use a simple transformer.
If your device requires 12V DC (e.g., routers, cameras), you’ll need a transformer + rectifier or a ready-made AC-DC adapter.

Buying Recommendations and Selection Guide

1. Determine Voltage Type
   AC or DC output? This affects the transformer and whether additional circuitry is required.
2. Calculate Load Capacity
   Total wattage of connected devices ÷ 0.8 = transformer minimum VA rating.
3. Safety and Compliance
   Ensure it complies with CE, UL, or IEC standards. Overload protection is a plus.
4. Consider Physical Constraints
   Indoor vs outdoor use, space for mounting, and ambient heat all matter.
5. Check Transformer Efficiency
   Higher efficiency = less heat + lower energy losses.
6. Choose Reputable Manufacturers
   Brands like Schneider Electric, ABB, and Siemens offer quality assurance and long product lifecycles.

Často kladené otázky (FAQ)

To reduce a 240V AC supply to 12V, the most suitable transformer depends on the output type (AC or DC), application, and load requirements. For basic low-voltage lighting or appliances, a laminated core step-down transformer will suffice. For compact, high-efficiency designs—such as in audio equipment or sensitive electronics—a toroidal transformer may be preferred. And in modern digital electronics, switch-mode transformers deliver excellent performance where DC output is required.

Making the right transformer selection ensures not only operational safety and energy efficiency but also compliance with global standards. Whether you’re building a solar lighting circuit, installing a CCTV system, or designing embedded electronics, investing in the correct step-down transformer is key to long-term reliability.
